So after printing nearly 40 miniatures, a pile of 6mm buildings and a small ancient fleet I decided to print some test matrixes to help with the dialling in off the printer…

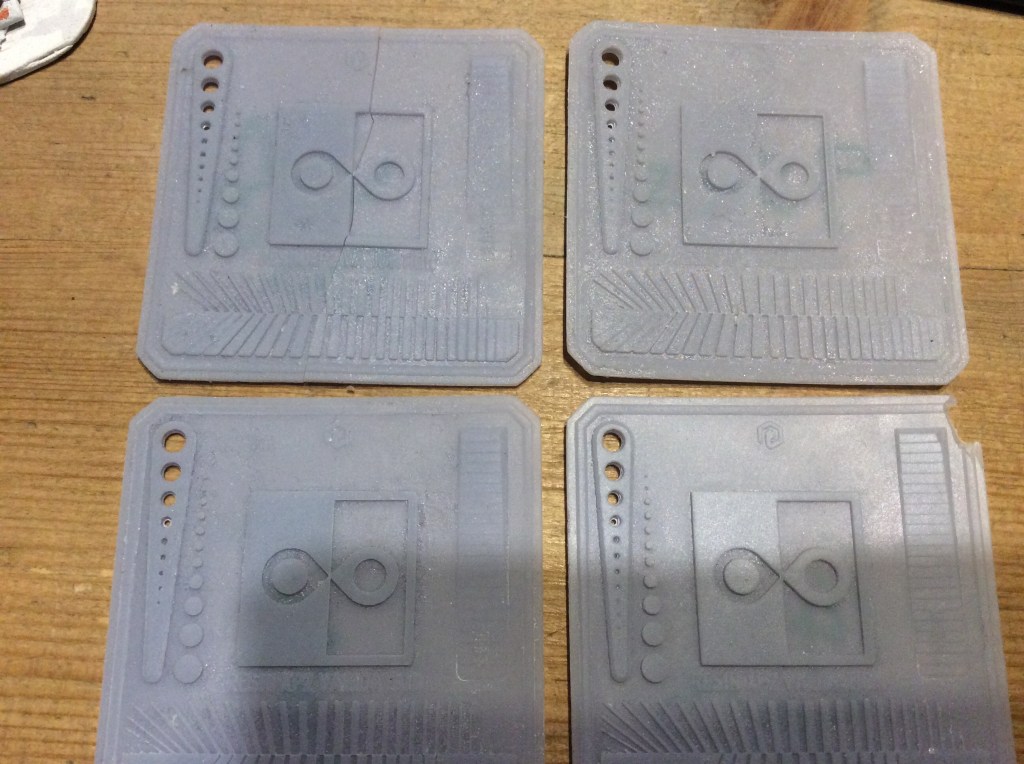

From left to right, top to bottom, we have 8.5 seconds, 9 seconds, 10 seconds and 14 seconds a layer. The 14 seconds is overexposed I think, but I may be totally wrong with that. From what I understand for circles and pegs you need to have the same amount of holes as pegs, for the bars at the bottom, the bars should technically be able to fit inside the slots below them and the two parts of the thing in the middle should just be touching, problem is they all look the same to me apart from the last one! Well I reckon I have until next Monday to ponder this as that is when the next bottle of resin will arrive.

Pete asked an interesting question about cost of resin over filament. There is definitely a difference. Resin cost me £29.00 for 500ml and filament was £25.00 for a one kilogram roll. Before lockdown the rolls were coming in at £18 a go. So there is definitely a price differential in place. However I have printed shit loads of things. Nearly 40 figures as well as my fleet and buildings so cost per thing is below 50p per item. There is a time differential as well. I can print six figures in the amount of time I could print one on the resin printer. Unfortunately the same cannot be said for the Ender. It would take six times as long to print the six miniatures.

I printed these for my eldest, just under 11 hours on the Ender (okay it was high quality)

Height determines the length of time on the Resin Printer.

I will get some of the resin stuff painted ASAP and also shove one onto the Ender and see what the difference is when painted up. A bit of a long journey, but I am enjoying it so far 😉.

5 thoughts on “Resin Experiments

    1. Cheers Pete. I have upped my game with the cleaning. I printed some more galleys and really went to town cleaning them and I have developed a system (aka copied other people) and there is a definite improvement.

      Liked by 1 person
